ALMA-WSU + ngVLA Wideband Era: How to contend with longer acronyms bigger data

Adam Ginsburg

Assistant Professor
Department of Astronomy
University of Florida, Gainesville

Salt team: Brett McGuire, Patricio Sanhueza, Fernando Olguin, Luke Maud, Henrik Beuther, Kei Tanaka, Yichen Zhang, Ciriaco Goddi, Richard Plambeck, Melvyn Wright, John Bally, Tomoya Hirota, Nick Indriolo, Miriam Garcia Santa-Maria
radio-astro-tools team: Tom Robitaille, Eric Koch [leading OJA paper - look for it Very Soon], Chris Beaumont, Adam Leroy, Erik Rosolowsky, Crystal Brogan, Todd Hunter, Sam Skillman, and John ZuHone
Slides available at https://keflavich.github.io/talks/salts_and_spectralcube_wsuportland2025.html and via QR codes for the next few slides

Some stuff I want to do w/WSU & ngVLA

  • Salt & other refractory element searches
  • HMYSO disk kinematics [measure M$_*$]
  • Temperature measurements



WSU/ngVLA = Big data


Brief practical pointers:
Don't duplicate data on disk
Probably can't afford to keep model, mask, residual, etc.
on disk (only cutouts)

Keep only .image or .image.fits, not both.
CARTA and astropy can both read either file type - no need for duplication!

Big data:
ALMA cubes are already (sometimes) bigger than memory in a single machine

ACES:
203G SO21_CubeMosaic.fits
203G SiO21_CubeMosaic.fits
203G HN13C_CubeMosaic.fits
203G HC15N_CubeMosaic.fits
203G H40a_CubeMosaic.fits
203G H13COp_CubeMosaic.fits
203G H13CN_CubeMosaic.fits
474G HNCO_7m12mTP_CubeMosaic.fits
474G HCOP_CubeMosaic.fits
How do we operate on them?

Cut them up or operate in chunks
What do we do about bigger-than-memory?
  • Tasks need to be broken up among different smaller-than-memory processes
    • spectral-cube and dask automate this
  • Use lazy operations and not-in-memory (“memory mapped”) operations: with spectral-cube, you can operate on cubes of any size
    • but be careful: there are bad operations that load all data in memory
    • ...and LLMs love them...
  • Maybe most important: “cutouts” are cheap and very fast, enabling analysis of segmented data (segmentation is a different problem)
Example:
# Load data & change units
from spectral_cube import SpectralCube
cube = SpectralCube.read(‘the_biggest_cube_ever.image’)
vcube = cube.with_spectral_unit(u.km/u.s,
                                velocity_convention='radio',
                                rest_value=103.04045*u.GHz)

# Measure moments of sub-cubes:
m0 = vcube.spectral_slab(-10*u.km/u.s, 10*u.km/u.s).moment0(axis=0)

# or the peak of the whole cube, no matter how big
max = cube.max(axis=0, how='slice')
Don't do this:
 array = cube.filled_data[:]

It will load everything into memory and throw away everything useful about spectral-cube

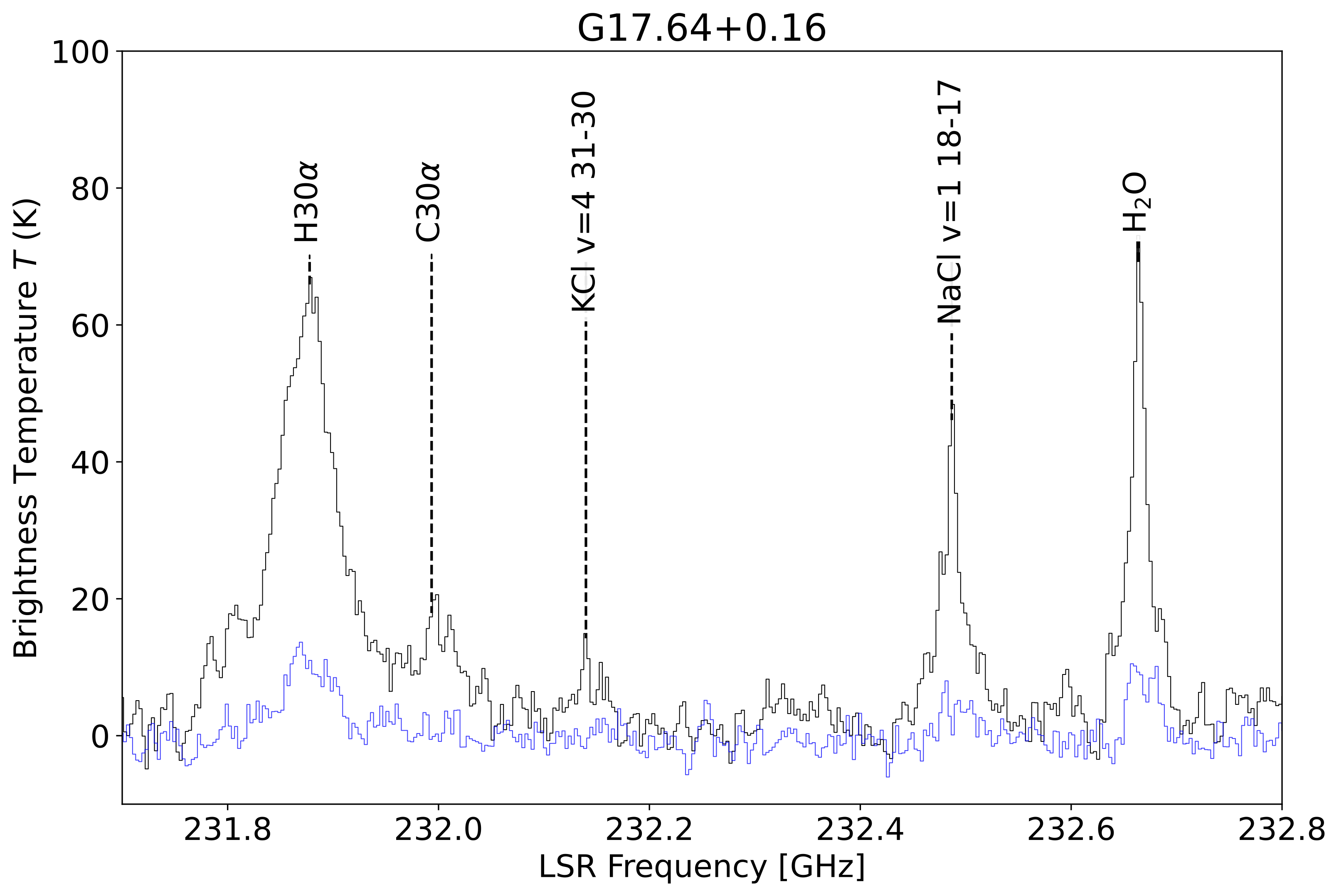

Big data good? Line stacking

Broad bandwidth gets you continuum sensitivity “for free” (but wide-bandwidth algorithms are likely to become important)

Line sensitivity either stays flat (for widely-separated lines like CO)
or requires stacking (e.g., methanol, SO, rare/complex molecules, salts)

Stacking, like gofish

[non-S/N optimally {see Loomis+ 2021}, but cheaply]
    from spectral_cube.analysis_utilities import stack_spectra
stack_spectra(cube, velocity_surface)
Blue: average
Black: stack
(shift-and-average)

Stacking cubes

from spectral_cube.analysis_utilities import stack_cube
stack_cube(cube, linelist, vmin, vmax)

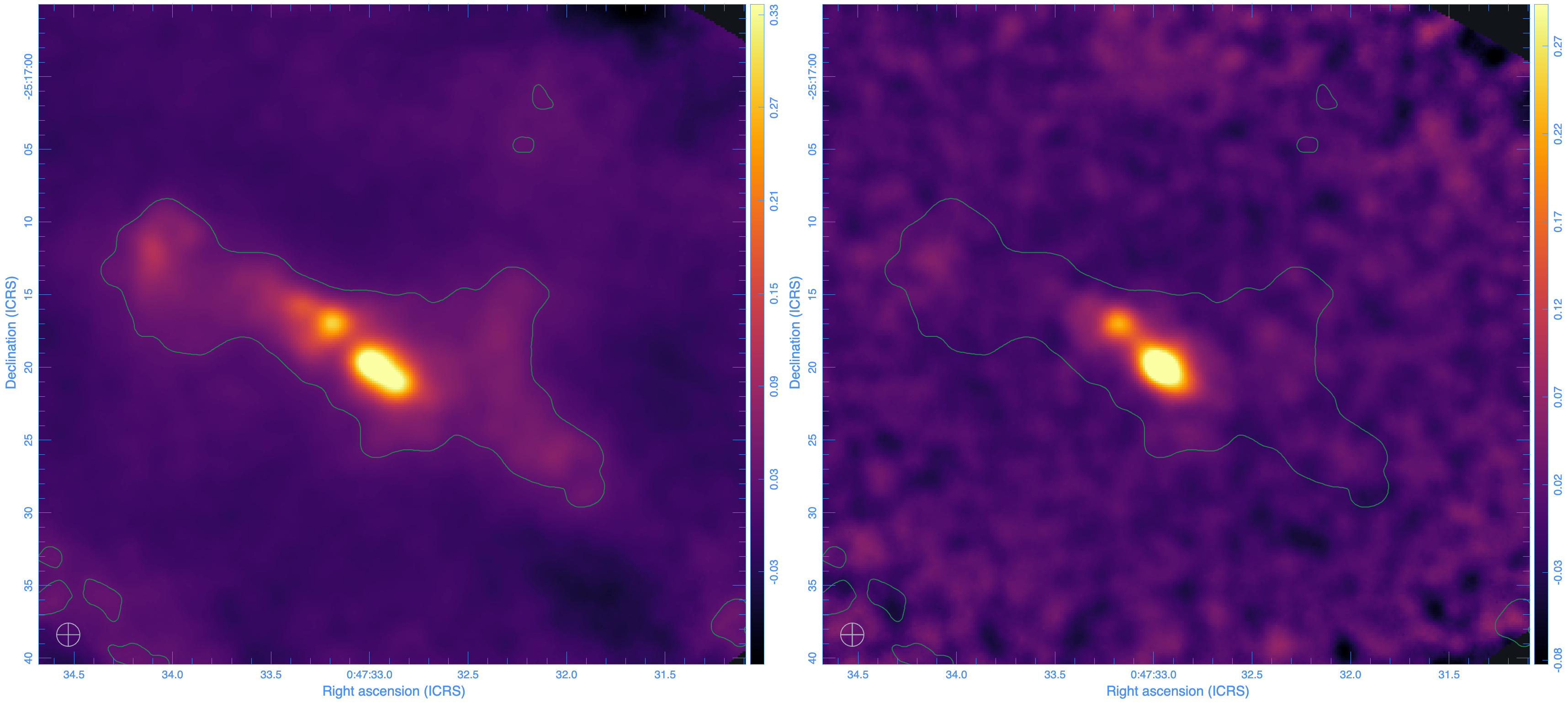

cube-line-moment: Bright-line-based templating

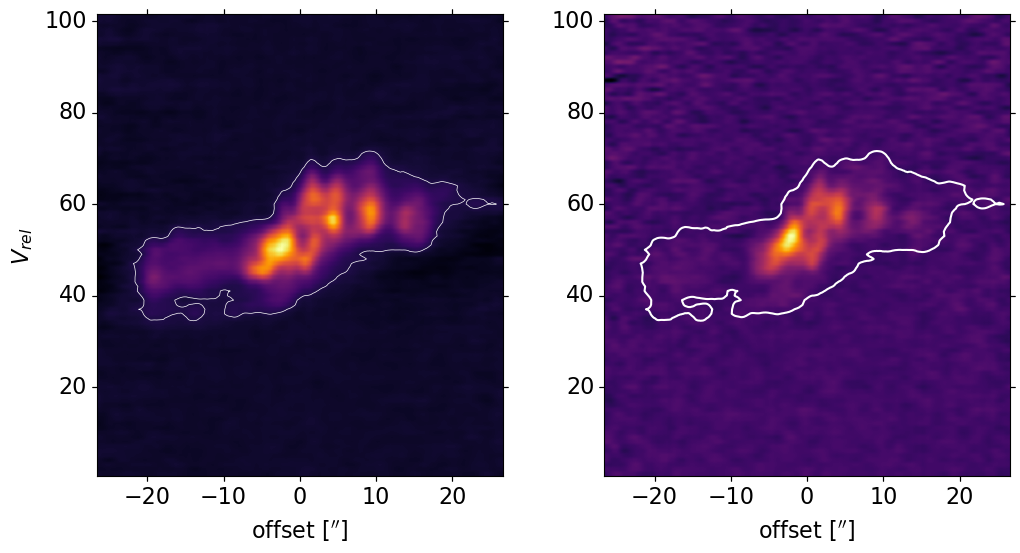

Select/mask data in 3D using high S/N line as template
analogous to bettermoments with keplerian_mask

Getting your data

Data reduction

  • Not in this talk, but there is a lot of experience in and out of the room on constructing very large, very signal-rich cubes.
  • Should we (we should) push for the observatory to produce cubes (i.e., advocate for observatory computing resources)
  • ngVLA is probably going to be data access via 'data platforms' (e.g., as for Rubin, Roman, etc.)

Community Tools

Astropy is funded under NASA infrastructure support. It is possible to get funded through astropy to develop software if you define community broadly enough:
https://github.com/astropy/astropy-project/blob/main/finance/proposal-calls/cycle5/cycle5.md

Some of this money is to support maintenance

Summary

Salt is seen in disks around HMYSOs
  • It is not detected in the ISM (maybe Sgr B2)
  • Salt is not seen in outflows (but maybe at the interface between disk & outflow)
  • NaCl and KCl are correlated with water, SiS, and PN.
  • Salt is uncorrelated with COMs and ionized gas.
  • Salt excitation is weird.
  • There are many observable and useful transitions between 5 and 120 GHz

Salt (and water, SiS, and PN) questions

  • Where do we see salt?
  • Why isn't it ubiquitous? (it's not)
  • Where does the salt come from?
  • What excites it?
  • Where else do we (should we) see it? Protoplanetary disks? AGN? SNRs?
  • What other species might coincide with brine?

Where do we see salts?

  • Red supergiant atmospheres
    • (CRL2688, IRAS+10216, VY CMa, IK Tau)
  • Massive young star disks (at least 9; this talk)
    • aside: there more HMYSO disks than evolved stars with reported salt now
  • Exoplanet atmospheres?
    • (hypothesized in hot jupiter clouds)

Orion Source I
a disk around a 15 M⊙ YSO

Salt: NaCl
Image: Ginsburg, NRAO

Brinary disks: NaCl moment 0 images

Data from Ginsburg+ 2019, Beuther+ 2019, Tanaka+ 2020, Maud+ 2019, Olguin+ 2021

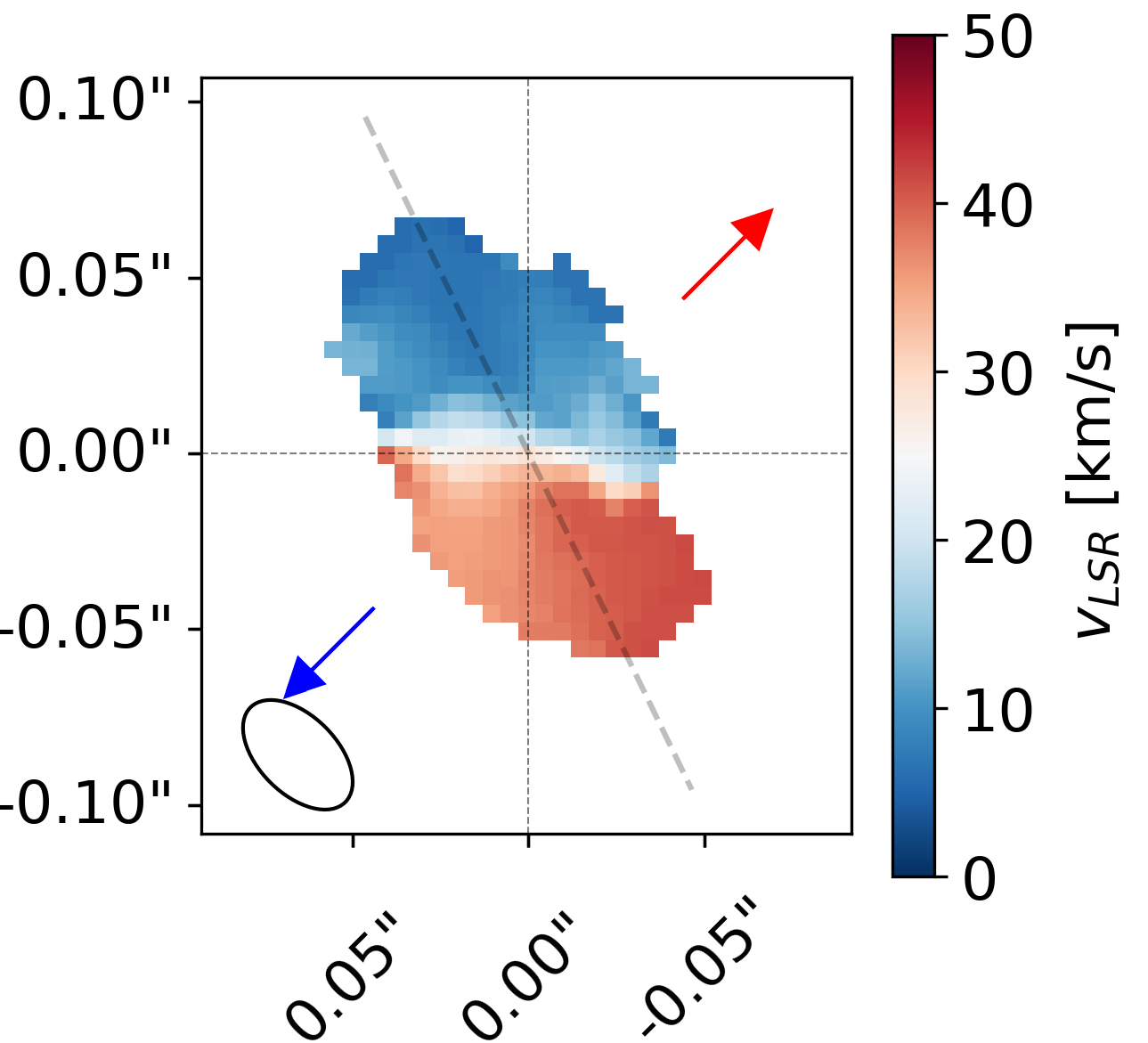

Brine lines measure dynamical mass


NaCl v=1 J=18-17 Stack of v=[0,1] Ju=[18,17]
SrcI


15 M⊙ 30 M⊙ 40 M⊙
Ginsburg+ 2019, Maud+ 2019
Beuther+ 2019, Tasa-Chaveli+ 2025:
CaS in mm1,
but no
💰 CaSH

What have we learned about brinaries?

  • Reasonably common: ~6-9 known so far, ~15 HMYSO candidates examined
    • Y: SrcI, G17, IRAS16547 A and B, G351mm1 and mm2, W33A?, NGC6334I?
      • Ginsburg+ 2019, Ginsburg+ 2023, Tanaka+ 2020
    • N: I16523, I18089, G11, G5, NGC6334IN, S255IR NIRS3, G333.23-0.06, I18162
  • Coincide w/line-poor sources
    • Not hot cores; little mass reservoir?
    • Or is the core resolved out?
  • Trace reasonably symmetric disks (in the well-resolved cases)
    • Though there remains controversy: there's at least one case where the brinary emission is along the apparent outflow

Compare: G17 vs G11.92

G17: Brinary
Hot (ionizing) photosphere. Circular disk.
G11.92: Not-Brinary
Line-rich!
Big, R=230-850 au (Ilee+ 2018)

Compare: G17 vs GGD27

G17: Brinary
Hot (ionizing) photosphere. Circular disk.
GGD27: Not-Brinary
SO, CH3OH lines. But line-poor!
detections
nondetections

What molecules correlate (in our sample of 23)?

Resolution is a (weak) predictor of salt detection

The gallery of brinaries with moment maps

Salt non? detection in Sgr B2

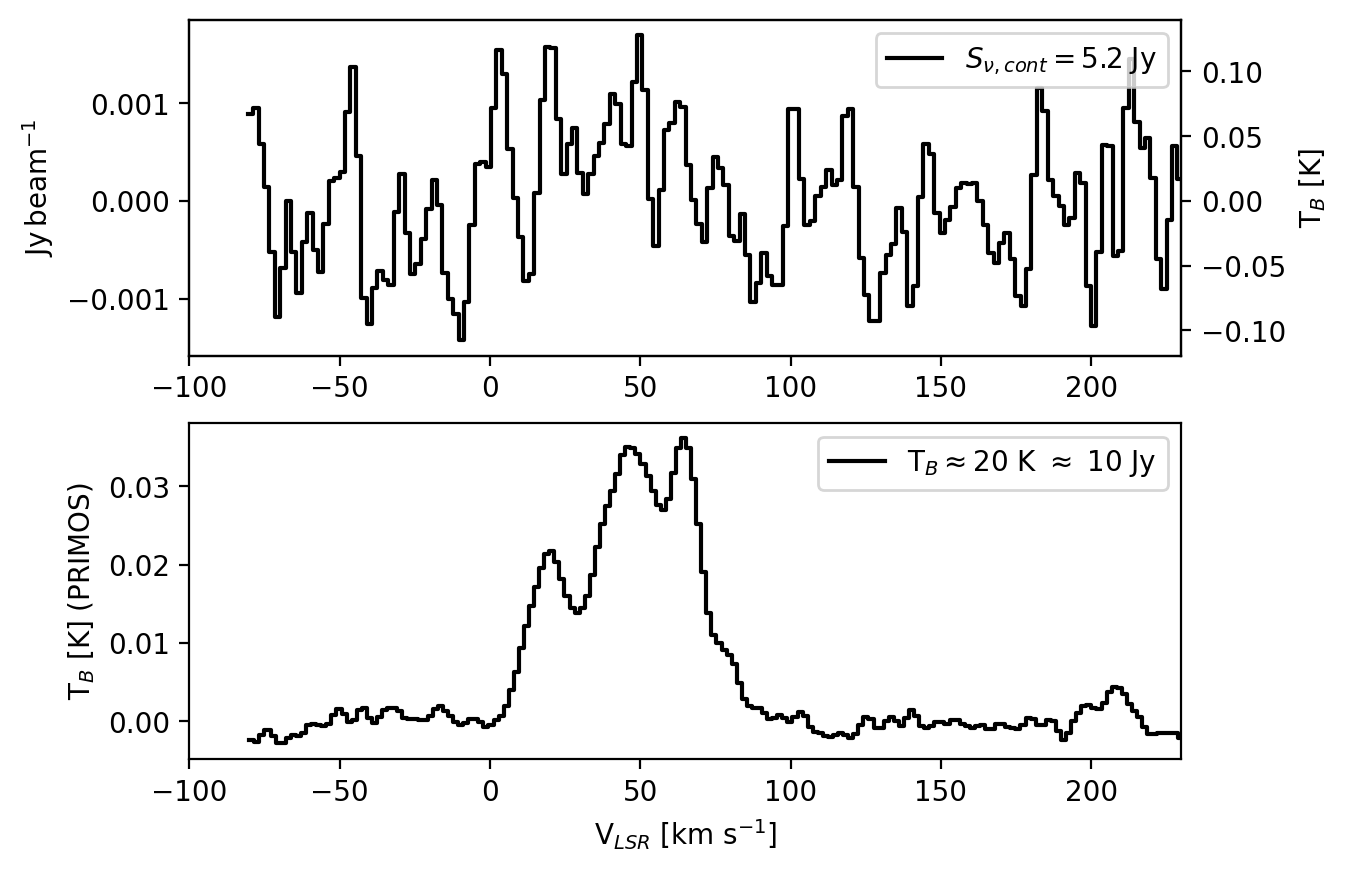

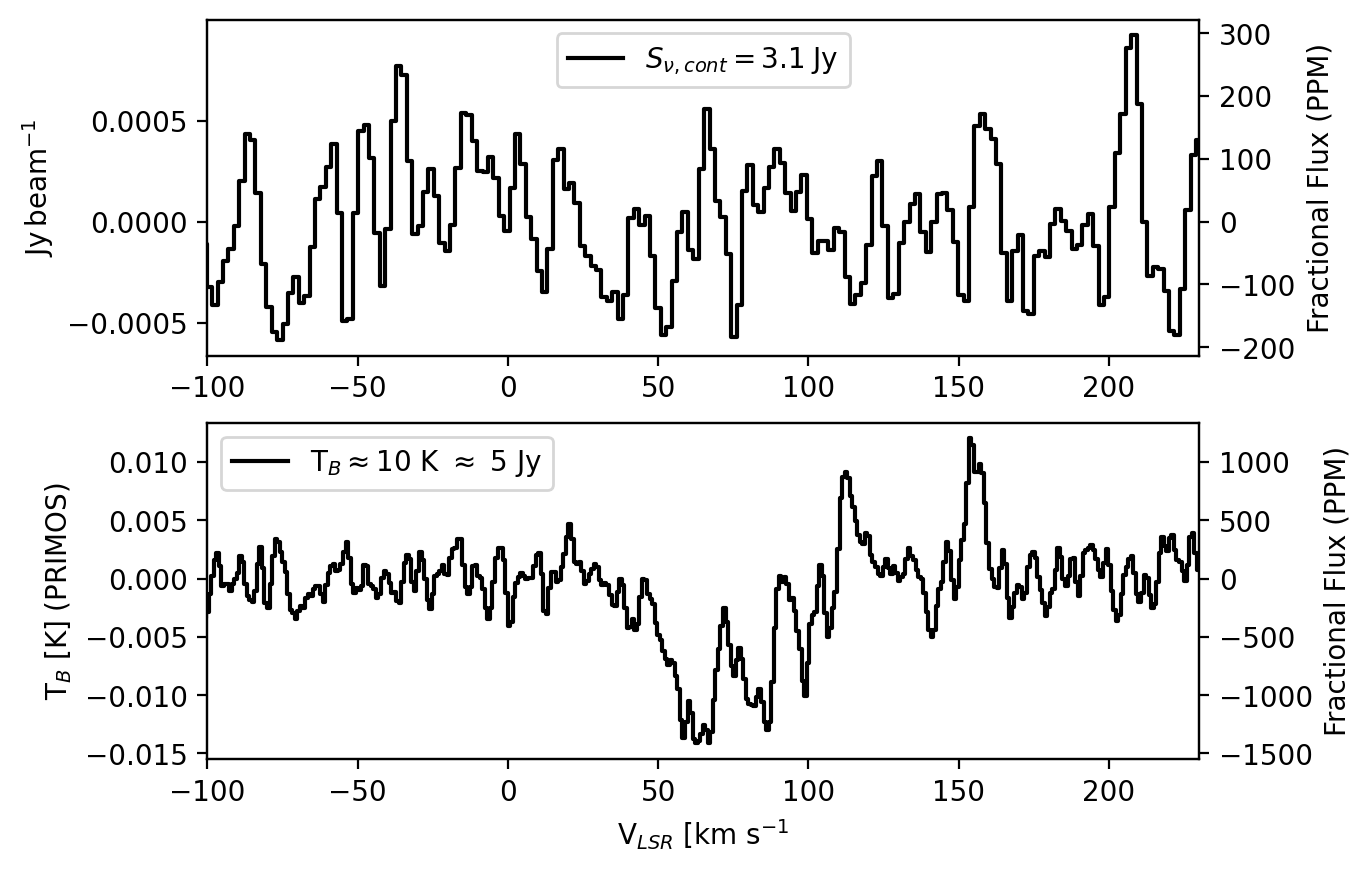

PRIMOS (GBT) detected NaCl 1-0 emission, NaCl 2-1 absorption in SgrB2N
VLA D detected neither; should have.
What will the ngVLA see?
Current measurements give $T_{rot}\sim50-150$ K $\rightarrow\sim$few K for ngVLA.
(but, $T_{vib}\sim1000$ K )
Non-LTE (RADEX) calculations ...
... hint that ngVLA-band lines may be brighter
(if density is too low to populate higher states)
What will the ngVLA see?
What will the ngVLA see?
Open question: What excites salt emission?
  • Key to make specific predictions of line brightness
  • Requires good models of disk vertical structure around high-mass stars

Why are rotational/vibrational temperatures different?

Why are rotational/vibrational temperatures different?

VY CMa vs Orion Src I

Both have $T_{vib}-T_{rot}$ disagreement
It's worse in young sources

A contrived model

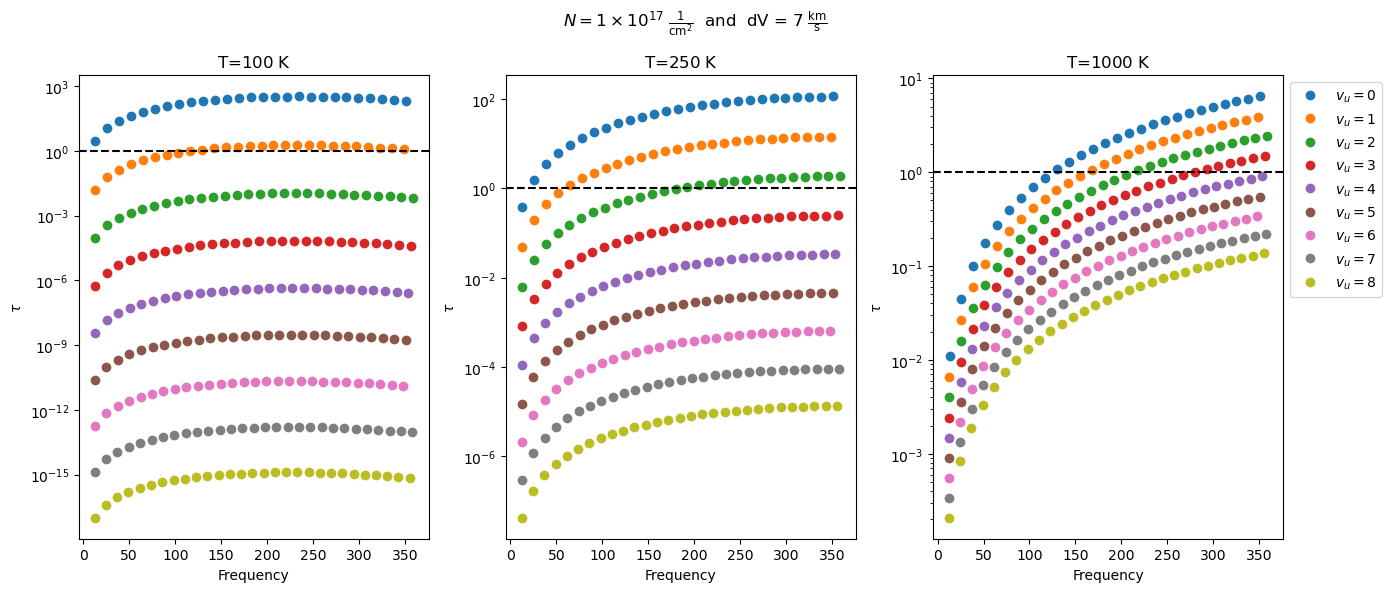

Optical depth could be important in disks
Kei Tanaka & students showing $\tau>>1$ in both line and continuum (with scattering) might explain the disks

When does salt enter the gas phase?

Depends on the binding energy of NaCl to grain surfaces.

Decin+ 2016 suggest thermal desorption will remove all salt from grain surfaces for $T_D > 100-300$ K, depending on assumed binding energy
(this range is consistent with VY CMa observations)

If $T_D>300$ K is all that is required, why do we not see salts in hot cores?

When does salt enter the gas phase?

If $T_D>300$ K is all that is required, why do we not see salts in hot cores? (see talk by Desmond Jeff)

When does salt enter the gas phase?

At atmospheric pressure: T~500-600K (Woitke+ 2018)

Briny emission should occur in low-mass disks too


$T\gtrsim200$K → $r\lesssim 2$ au for L⊙ stars

But the gas temperature required for gas-phase salts could be anywhere between 100 < T < 600 K.

Does salt have friends?

NaCl, KCl, SiS, PN, and H2O coincide.
(AlO is also present in Orion)

What others might exist in these regions?
FeS? FeO? LiCl? HCl? AlCl? AlOAlO?

Summary

Salt is seen in disks around HMYSOs
  • NaCl and KCl are correlated with water, SiS, and PN.
  • Salt is [mostly] not seen in outflows or molecular clouds.
  • It is uncorrelated with COMs and ionized gas.
  • Its excitation is weird.
  • There are many observable and useful transitions between 5 and 120 GHz
Questions:
  • Where does the salt come from?
    • What temperature regions?
    • What radii? Vertical scales
  • What excites it?
    • Why is $T_{vib}\sim1000$ but $T_{rot}\sim100$ K?
  • Why isn't it ubiquitous?
  • Where else do we (should we) see it?
What's next for salts?
Deep VLA observations of low-J lines in Orion
Salt backup slides

Possible future uses for these lines?

  • Metallicity measurement in deeply embedded star-forming environments? (at least of Na, K, Cl)
  • Disk kinematics of high-mass stars, which are otherwise unobservable (τ>1 at mm wavelengths)
  • Disk kinematic measurements at early stages?
  • Probe dust destruction (and/or formation?) in outflows, disks?
  • Probe radiation environment around HMYSOs?

Why do we see salt?

  • Previously, NaCl & KCl only in AGB* atmospheres,
    associated with dust formation
  • Most likely dust destruction here
    Dust destruction happens immediately as the outflow is launched?
  • What about excitation? We see vibrationally excited lines, which are not seen in AGB*s

We do not have a viable model to explain these temperatures

A strong non-blackbody radiation field from 25-40 µm may explain them.
Forsterite (MgSiO4) has some emission bands in that range. Maybe?
